Fighter
Medium Duty
From the Creators of the Medium Duty Truck - All the Truck You Need
- Overview
- Safety
- Performance
- Interior
- Variations
Redefining Everything a Truck can be, a New Era of Evolution
In search of the ideal of trucks, Fighter® is now entering a new area of evolution. Introducing an advanced preventive safety system for safe transportation that should be prioritized above all. In addition, we pursued comfortable driving based on people and a new level of efficiency and economy. And we have a full lineup of models with 4-cylinder engine and 6-cylinder engine. Fighter® that meets the enthusiastic demands of professional drivers in every operating scene. The more you run, the more you can feel its true value.
Active Brake Assist 5 (ABA5)
Detects vehicles and pedestrians and reduces collision damage with warnings and brakes. Detects the danger of collision and reduces damage with warnings and brakes. The front recognition camera and high-precision millimeter-wave radar detect the traffic situation ahead. When there is a risk of collision with a running vehicle, a stationary vehicle, a pedestrian, etc., an alarm buzzer and a monitor display in the meter give an alarm according to the distance to the target and the driving situation, and the driver’s collision avoidance operation is performed. Prompt. In addition, it activates the brakes as needed to help avoid collisions or mitigate damage.
ABA5 collision avoidance image
Supports collision avoidance and collision damage mitigation by alarm and automatic braking. Depending on the degree of urgency, it may start from 2nd STEP.
ABA5 is a system that assumes the driver is driving safely, and does not avoid collisions or mitigate collision damage in all situations. The system has limitations, such as not responding depending on the shape, direction, and other conditions of obstacles in front. When driving, always check the safety of your surroundings and keep a sufficient distance between vehicles. For details, please refer to the instruction manual.
High-Load Straight-Four or Powerful Straight-Six
A lightweight 4-cylinder 4V20 engine that pursues high loading and low fuel consumption is installed in GVW 7.5t and 8t vehicles. The high-power, 6-cylinder 6M60 engine with plenty of room is available from GVW 8t vehicles to 20t class.
4V20
3.907ℓ INLINE-4 INTERCOOLER TURBO ENGINE
(Straight 4 intercooler turbo) Total displacement: 3.907L
6M60
7.545ℓ INLINE-6 INTERCOOLER TURBO ENGINE
(Straight 6 intercooled turbo) Total displacement: 7.545L
Newfound Transparency for Your Vehicle Operations with Truckonnect®
Truckonnect® provides real-time information on vehicles in operation via the Internet. Information transmitted by vehicles is stored in the FUSO database (cloud). Customers can monitor the current location and operational status of their vehicles via PC or smartphone. Truckonnect® can be used in a wide range of business situations, such as speedy response to vehicle problems, improving operational efficiency and preventing dangerous driving.
＊All vehicles are equipped with a Truckonnect communication terminal as standard. The dedicated Customer Assistance Center is available 24 hours a day, 365 days a year for various telematics services. In order to use Truckonnect services, you must apply. After FUSO informs you of the access ID and password that will be issued after the application, you will be able to use the service from your PC or smartphone. For details, please contact your nearest Mitsubishi Fuso dealer. Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
Position and Trajectory
Displays real-time position on a map and grasps the vehicle trajectory, including the route taken and the time it has parked or stopped.
Safe Driving Information
Detects sudden acceleration and braking, and displays on the screen when there is a tendency of dangerous driving.
Fuel Efficiency Information
Automatically calculates and compiles downloadable data of daily and monthly fuel consumption.
Fleet Management
Allows you to grasp the operating status of your vehicles and compare past and current months’ driving and idling time.
Remote Diagnosis
Detects diagnostic trouble codes (DTCs) that signal engine failure and notifies you in real time.
Geo-Fencing Functionality
Real-time notification when a vehicle enters or exits a specific pre-registered area, improving operational processes and efficiency.
Feedback from Our Valued Customer Continue to Drive Improvements to Truckonnect®
*Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation. Registration is required to start the Truck Connect service. Upon completion of the registration, an operation manager account will be communicated to you and you will be able to use it. For more details, please contact your local dealer or sales representative.
TOTAL SAFETY
Enabling Safer Transportation with Advanced Preventative Safety Systems
Active Brake Assist 5 (ABA5)
The system detects vehicles and pedestrians and mitigates collision damage by warning and braking. The system detects the danger of collision and mitigates the damage by warning and braking. Detects traffic conditions in front of the vehicle using a front-viewing camera and high-precision millimeter wave radar. When there is a risk of collision with a moving vehicle, stationary vehicle, pedestrian, etc., the system alerts the driver with a warning buzzer and a monitor display in the instrument panel, depending on the distance to the target and the driving conditions, to encourage the driver to avoid a collision. The system also activates the brakes as necessary to help the driver avoid a collision or mitigate damage.

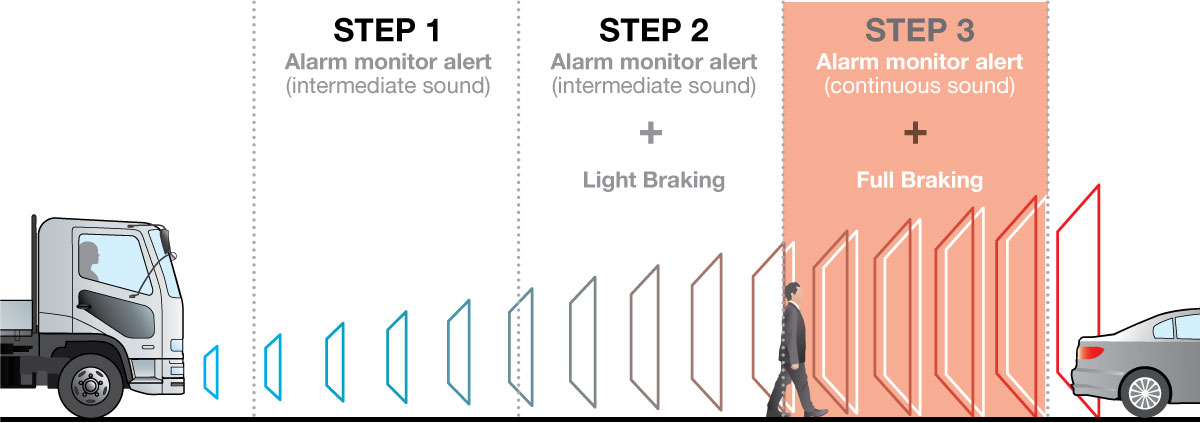

ABA5 Collision Avoidance Illustration
The system supports collision avoidance and mitigation by alerting the driver and activating the automatic brakes. Depending on the degree of emergency, the system may start from the 2nd STEP.
ABA5 is a system that assumes the driver is driving safely, and does not avoid collisions or mitigate collision damage in all situations. The system has limitations, such as not responding depending on the shape, direction, and other conditions of obstacles in front. When driving, always check the safety of your surroundings and keep a sufficient distance between vehicles. For details, please refer to the instruction manual.
Active Sideguard Assist®
Reduces the risk of left-turn entrapment accidents. When making a left turn or changing lanes to the left, the system predicts the area where the vehicle will pass and detects objects within the area. When a danger is detected, the warning lamp on the passenger door pillar lights up in yellow to alert the driver. If the driver continues to steer to the left or turn left, the warning buzzer sounds and the warning lamp flashes red to warn the driver. This system actively supports safe driving by monitoring blind spots during operation.
* The factory-installed option is not available for all models
* Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation

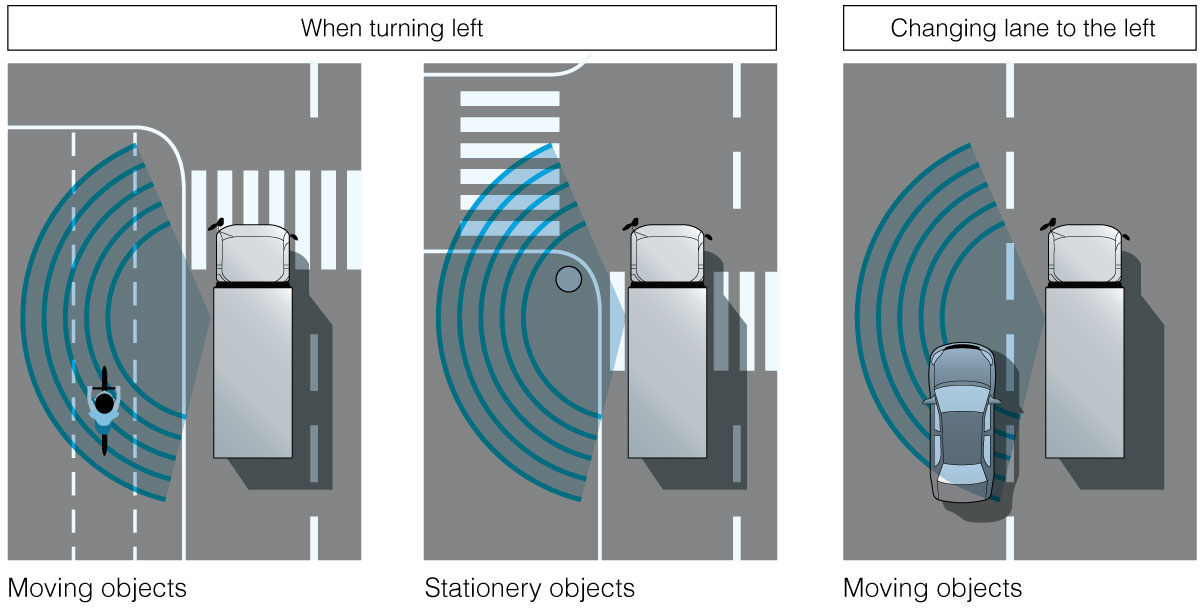

■ Active Sideguard Assist Detection Illustration

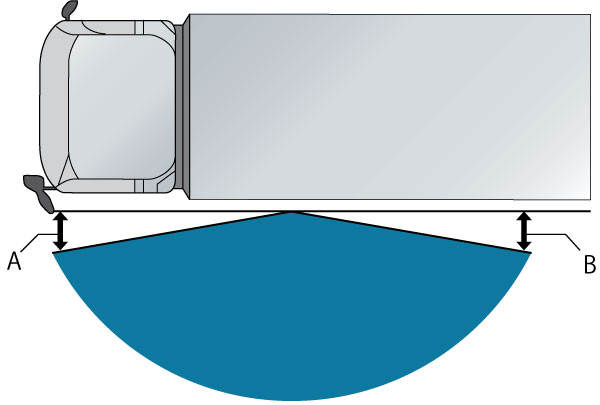

■ Detection Range
It covers a wide range of detection, except for a small portion in the front of the vehicle (part A) and the rear of the vehicle (part B).
The dimensions of Part A and Part B differ slightly depending on the specifications of the vehicle.
Active Sideguard Assist assists the driver in preventing false recognition and does not enable the driver to fall asleep or look away. There is a limit to the recognition performance. Do not overestimate the system, and always check the safety of your surroundings and drive safely. For details, please refer to the instruction manual.
Moving Toward a Safer Driving Experience Without Compromise

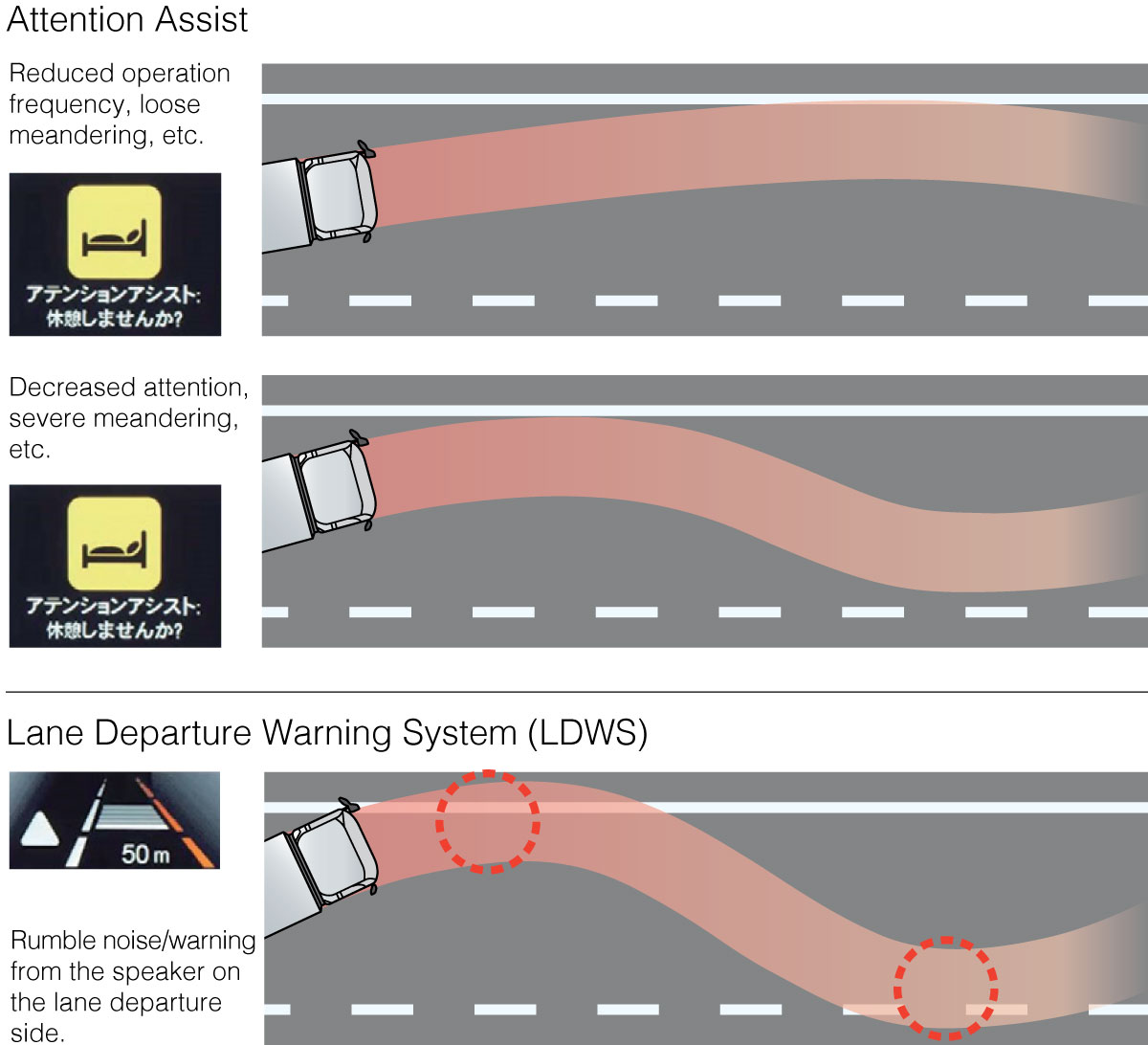

■ Attention Assist Function Illustration

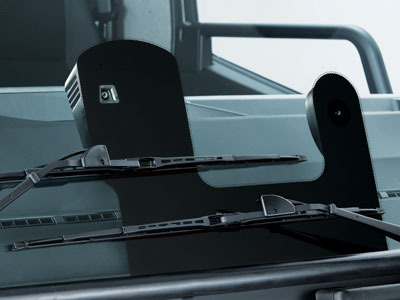

Attention Assist
The system monitors the driver’s attention span and warns the driver. When driving at high speed, the system monitors the driver’s alertness based on the vehicle’s wobble detected by the white line recognition camera*1 and the status of steering wheel, indicator, and brake operations. When the driver’s attention level drops, the system warns the driver with an in-meter monitor and buzzer as necessary. The vehicle is also equipped with a lane departure warning system (LDWS*2), which warns and alerts the driver if the vehicle deviates from its lane.
*1 The system also recognizes yellow lines.
*2 LDWS: Lane Departure Warning System
*Attention Assist is activated at speeds of 60 km/h or higher. The Lane Departure Warning System (LDWS) is included in the Attention Assist function. It also complies with the legal requirements for LDWS installation.
Attention Assist is a system that notifies the driver of a decrease in driving attention and assists in safe driving. Please do not overestimate the system, and try to drive safely by taking appropriate rest as needed while driving. The system does not work when driving at low speeds. The lane departure warning system (LDWS) is an aid to safe driving, and is not a device that enables you to fall asleep or drive blindly. It also cannot assist in driving when white or yellow lines cannot be recognized, such as in snowfall, snow accumulation, flooding, or backlighting, or when visibility is poor, such as in rain or fog. Please operate the steering wheel according to the surrounding conditions and drive safely. For details, please refer to the instruction manual.
■ ESP® Control Illustration
ESP® (Electronic Stability Program)
The system stabilizes the vehicle and prevents skidding and rollover accidents. Sensors constantly detect the posture of the vehicle as it travels. The system warns the driver if the vehicle’s posture becomes unstable due to changes in steering operation and vehicle behavior during curves and lane changes. In addition, if the system determines that there is a risk of skidding or rolling over, it controls the engine torque and brakes to guide the vehicle in a stable direction. The system assists the driver in avoiding danger. An ESP® cut switch is also provided to cancel the operation.
* ESP® is a registered trademark of Daimler AG.
ESP® is not a device that allows you to drive beyond your limits; the effect of ESP® is only achieved when the grip of the tires does not exceed its limits. Please do not overestimate ESP®, and be sure to drive safely by slowing down sufficiently on slippery surfaces and before curves. For details, please refer to the instruction manual.

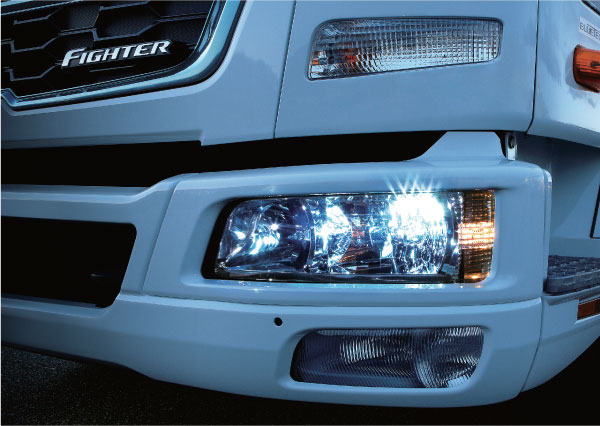

HID Headlamps for Enhanced Night Vision
High-intensity-discharge headlamps, which provide approximately twice the illumination of halogen headlamps and a color close to that of natural light, are standard equipment on vehicles with lower headlamps (Cargo series only).

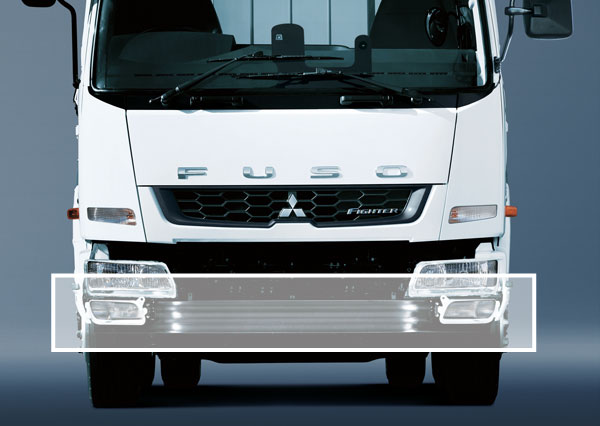

FUP and RUP Standard
In the event of a collision, the Front Underrun Protection (FUP) prevents passenger cars and other vehicles from diving into the front of the truck, thereby reducing collision damage, and the Rush Underrun Protection (RUP), which complies with ECE regulations, is standard equipment.
Front bumper removed for illustration purposes.
Brake Override System
When the brake pedal is pressed while the accelerator pedal is depressed, the brake system takes precedence. The system is designed to be fail-safe in the event of an emergency.
Electromagnetic Retarder
An electromagnetic retarder, which provides excellent deceleration and extends the life of brake linings, is available as a factory-installed option for cargo models (except some models).
Robust Safety Cab for Occupant Protection in Collision
The robust cab body of the Fighter has achieved high cab rigidity. Not only does it provide excellent ride comfort, but it also reduces cab deformation in the event of a collision, contributing to securing the survival space for the occupants.
PERFORMANCE

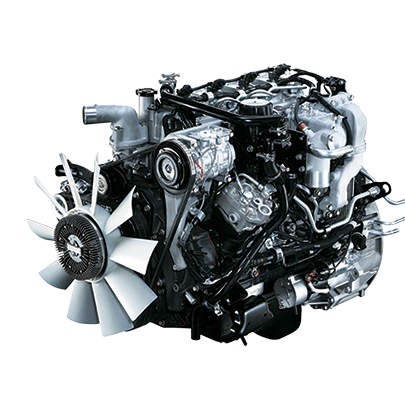

High-Load Straight-Four or Powerful Straight-Six
4V20
3.907ℓ INLINE-4 INTERCOOLER TURBO ENGINE
(Straight-4 intercooler turbo) Total displacement: 3.907L
The straight-four turbocharger provides economical transportation with high payload.
Engine Details
4V20 170PS
125kW (170PS)/2,500rpm
520N･ｍ (53kgf･ｍ)/1,500rpm
Pursuing high loading capacity and low fuel consumption.
The lightweight 4-cylinder 4V20 engine is installed in the GVW 7.5-ton and 8-ton models.
Highest Loading Capacity in the GVW8t Class due to Weight Reduction
Vehicles equipped with the lightweight, small-displacement 4V20 engine significantly reduce the weight of the cabbed chassis, achieving the highest level of loading in the GVW8t class.
High Reliability with Small Displacement Engine
It has passed the durability tests required by the strict medium-duty truck standards to achieve high performance and high reliability. It is also equipped with an electric exhaust brake, ensuring excellent auxiliary braking performance despite its small displacement.
Performance Above Fuel Efficiency Standards
All models with the 4V20 engine achieve a fuel efficiency level of 5% above the FY2015 heavy-duty vehicle fuel efficiency standard.
Equipped with Fuso Launch Assist to Improve Launch Performance
Fuso Launch Assist is a standard feature on the 4V20 engine models to ensure smooth starting when loaded. When the switch is turned on, the engine speed is increased compared to the normal speed to ensure better starting performance.

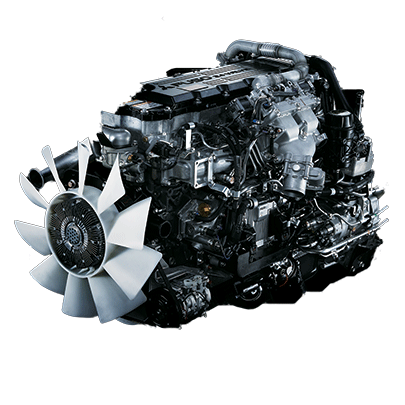

6M60
7.545ℓ INLINE-6 INTERCOOLER TURBO ENGINE
(Straight 6 intercooled turbo) Total displacement: 7.545L
For high-volume, high-quality transportation, the straight-six turbo is the way to go.
Engine Details
6M60-T4 220PS
162kW (220PS)/2,070rpm
745N･m (76kgf･m)/950-2,070rpm
6M60-T5 240PS
177kW (240PS)/2,270rpm
745N･m (76kgf･m)/950-2,270rpm
6M60-T6 270PS
199kW (270PS)/2,500rpm
785N･m (80kgf･m)/1,100-2,400rpm
High power with plenty of room to spare.
The 6-cylinder 6M60 engine is available for GVW 8t to 20t classes.
High power and high torque straight-six turbo engine
The inline 6-cylinder turbocharged 6M60 engine is available in three types. The 6M60 engine has a flat maximum torque range for a powerful and stress-free driving experience.
Advanced engine technology
It features a common-rail fuel injection system that improves combustion efficiency and EGR control that enhances NOx reduction. The 6M60 engine also features a VG turbocharger that delivers full torque from low speeds.
FY2015 Heavy-Duty Vehicle Fuel Efficiency Standards
All models with the 6M60 engine, except the FQ, achieve fuel economy that meets Japan’s 2015 heavy-duty vehicle fuel economy standards.
Compatible with Advanced On-Board Diagnosis System [J-OBDII]
The on-board fault diagnosis system has been upgraded in response to the increasingly sophisticated and precise emission reduction technologies. The system detects and monitors abnormalities in emission control equipment, and in the event of an abnormality, the system displays an alarm to inform the driver and stores the details of the failure in the system.
Realize Even Greater Fuel Savings with ISS
The ISS (Idling Stop & Start) system, which reduces wasteful fuel consumption and emissions, is now standard equipment on all 4V20 engine models and on 6M60 engine models with FK (GVW8t) of 177 kW (240 PS) or higher*. The system is designed to improve fuel economy.
* A factory-installed option for some cargo models (excluding FQ).
* The standard ISS is automatically activated when the engine key is turned on.
Pursuit of Clean Performance and Low Fuel Consumption Through Advanced Technology
BlueTec®, Our Environmental Technology of Choice
BlueTec® Technology has been evolved with the most advanced level of environmental technology for further environmental friendliness. The BlueTec® Technology achieves both high environmental performance and fuel efficiency at the top level in its class, and is a step ahead in environmental performance to meet the trust of shippers.
* BlueTec® is a registered trademark of Daimler AG.
* AdBlue® is a registered trademark of the German Automobile Manufacturers Association.
■ Regenerative DPF
The regeneration-controlled DPF, which significantly reduces PM, reduces the frequency of regeneration and considers fuel consumption and operation. The amount of PM accumulation and regeneration status can be checked on the display of the meter cluster.
■ BlueTec®
NOx is decomposed by AdBlue® (urea water) and a catalyst. This allows for highly efficient combustion on the engine side, leading to improved fuel efficiency and dynamic performance, as well as reduced CO2 emissions.
Welcome to a New Era of Fleet Management
Digital Tachograph with Remote Data Management*
High-precision operation records with digital information are possible, and information management is extremely easy. Network digital signals are also supported, and data can be easily obtained from a PC through linkage with Truck Connect.
* Standard equipment on GVW models over 11t (non-equipped option available), optional equipment on GVW models 7.5t and 8t.
Offline mode: Use as a stand-alone digital tachograph
Can be used even without a Truck Connect contract. Information is recorded on the SD card in the digital tachograph.
Online Mode: Combination with Truckonnect *
This mode links digital tachographs with the powerful Truckonnect tool and directly tap into its analytics power for unprecedented transparency. The information is stored on an external server via a mobile line and can be downloaded and checked in real time with the driver’s ID from the dedicated Truckonnect page.
*A separate paid contract is required.
COMFORT
Stylish and Functional for a Supreme Driving Experience
Superior Driver-Friendly Ease of Entry and Exit
The doors open at an angle of almost 90 degrees, large assist grips are used, and wide steps with optimal step height ensure excellent accessibility. Consideration has been given to the daily operation of the vehicle.

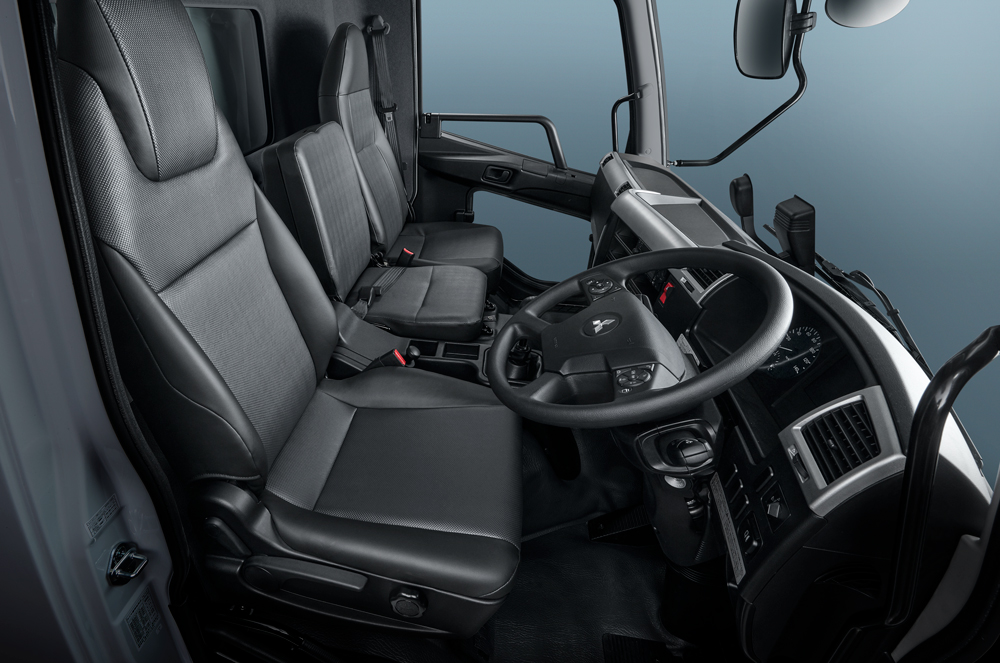

A Seat Design Focused on Comfort and Less Fatigue
The driver’s seat provides a high level of hold with a well-fitting seatback and large side supports. This greatly reduces driving fatigue. There are three types of interior specifications to choose from, and the Premium Line (optional specification) features a driver seat heater.

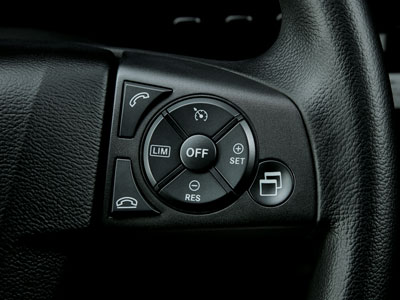

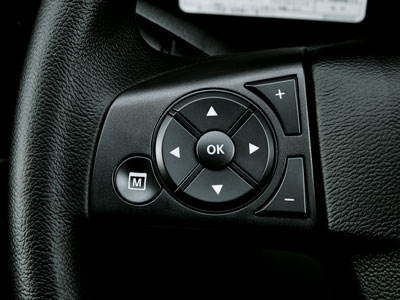

Steering Wheel Switches
A variety of operations are possible with buttons right at your fingertips. This operation requires less eye movement and contributes to safer driving.

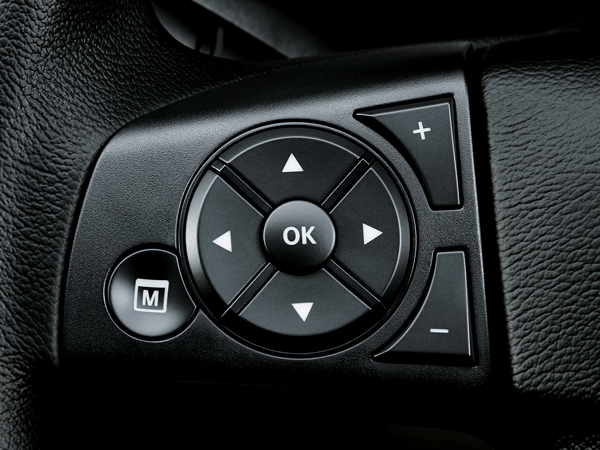

Left Side
● Multi-function monitor menu controls
● Radio volume control
● Air suspension ride height adjustment
● Engine speed adjustment

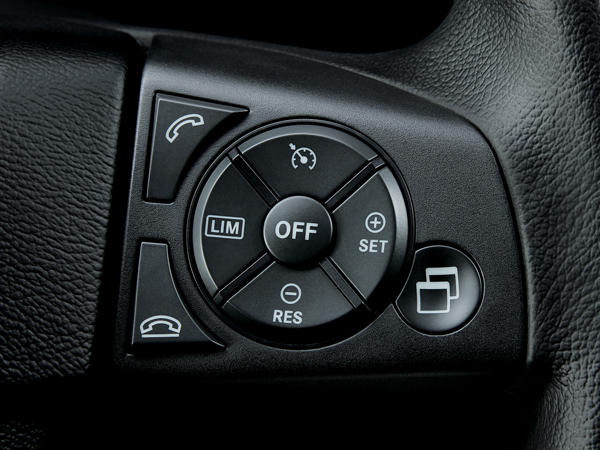

Right Side
● Telephone controls
● Auto-cruise adjustment

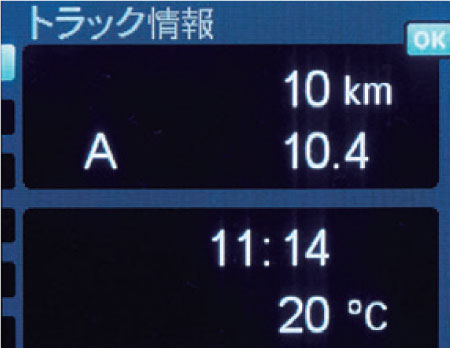

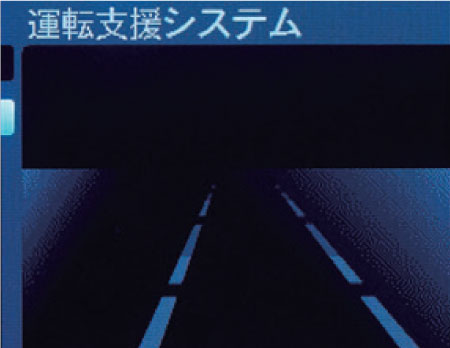

Meter Cluster with Multi-Function Monitor
A 4.1-inch multi-function monitor (large multi-function display) is adopted in the center of the meter cluster. By switching the display, a variety of vehicle information can be easily checked.

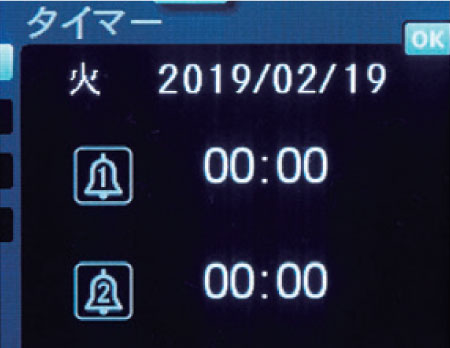

Example of various modes displayed on the multi-function monitor
Tour Mode
Mileage, AdBlue Status, DPF Check, etc.
Driving Mode
Speed, Lane Departure Warning Signal, etc.
Information Mode
Alarm Setting, Audio Options, Hands-free Dial etc.

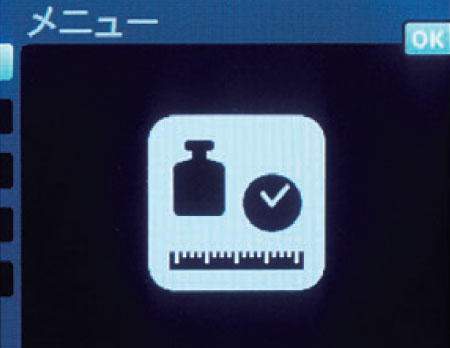

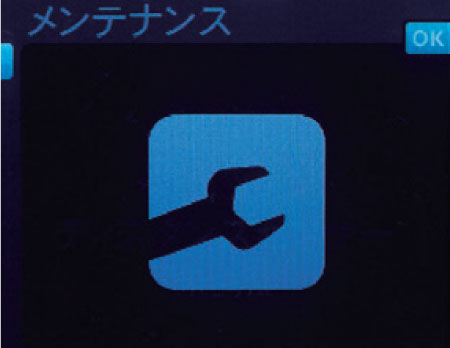

Work Mode
Axle Weight & Air Pressure Check, Air Suspension Adjustment, Maintenance Intervals

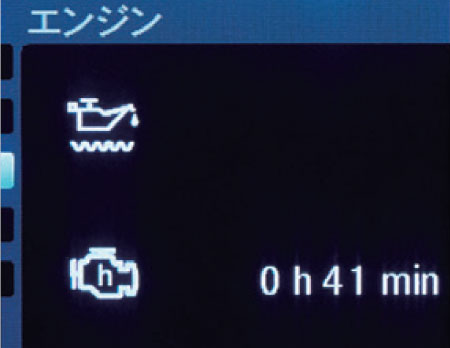

Truck-Check Mode
Engine Oil Level, Uptime, etc.
Driver Mode
Settings for Time, Language, Lighting, etc.

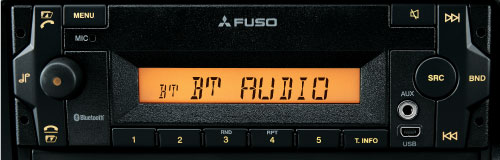

Bluetooth® Enabled Audio
Connect your smartphone or other device with Bluetooth® capability for high audio fidelity. You can utilize the auxiliary jack and USB slot, play MP3/WMA audio files, and or tune in to AM/FM tuner radio with an alarm function for a variety of music enjoyment and hands-free phone calls. It is also possible to make hands-free phone calls.
* Bluetooth® is a trademark or registered trademark of Bluetooth SIG, Inc.
* WMA (Windows Media™Audio) is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.

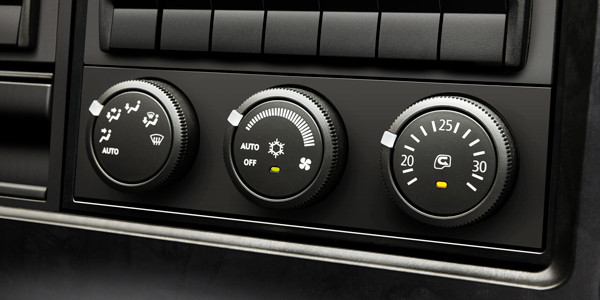

Higher Comfort and Fuel Efficiency with the Full-Auto Cold Storage Air Conditioner
A fully automatic air conditioner with a cold storage system is standard equipment. This improves comfort and contributes to economic efficiency by reducing fuel consumption. In addition to the fully automatic air conditioner that automatically maintains the interior at the set temperature, the coolant storage function cools the coolant in the air conditioner unit while the vehicle is in motion, allowing for short periods of cooling even when the ISS is running, thereby reducing fatigue.
Benefits
Short-term cooling is possible even when the engine is stopped.
By storing cold air in the cold storage in the evaporator while the vehicle is running, it is possible to provide cold air for about one minute even when the engine is stopped (= AC compressor stopped). This is effective when the ISS is activated at traffic lights.
Contributes to reduction of fuel consumption for driving
In environments with low heat load, the extra cooling capacity can be stored in the refrigerant while driving with the gas pedal off, such as when going downhill. This reduces the amount of time the air conditioner is in operation when the gas pedal is on, contributing to reduced fuel consumption.
Standard Model – Default Equipment
Steering Wheel Switch
Key functions at your fingertips help keep your eyes on the road.
Auto-Cruise
Automatically maintains the set vehicle speed on highways and other roads.
Auto-Lighting-System
Detects ambient brightness and automatically adjusts lights.

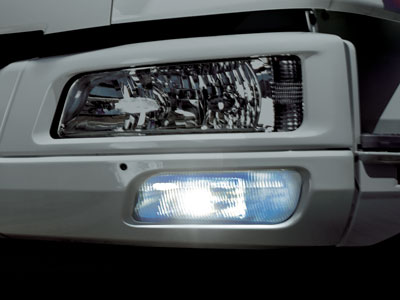

Fog Lamps
Ensures forward visibility in bad weather conditions such as fog and snowfall.
Wipers with Rain Sensors
Detects raindrops and automatically controls the windshield wipers.

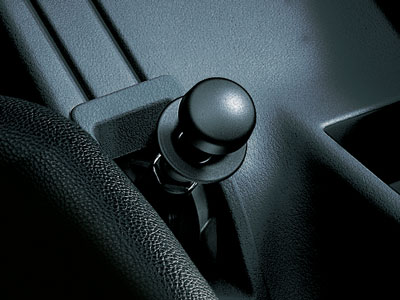

Rear-wheel Parking Brake
Operate the parking brake with the push of a button – easy and stable.

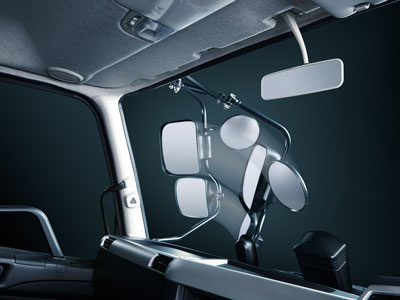

Retractable Mirror Rack
The electrically retractable mirror mount is convenient for narrow roads.

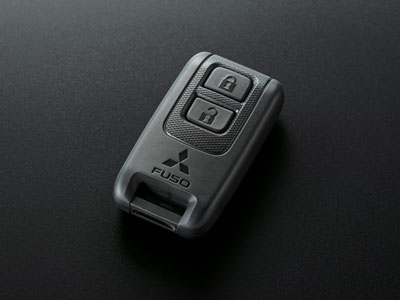

Keyless Entry System
Doors can be easily locked and unlocked from a distance.
Wipers with Rain Sensors
Detects raindrops and automatically controls the windshield wipers.
Rear-wheel Parking Brake
Operate the parking brake with the push of a button – easy and stable.
Retractable Mirror Rack
The electrically retractable mirror mount is convenient for narrow roads.
Keyless Entry System
Doors can be easily locked and unlocked from a distance.

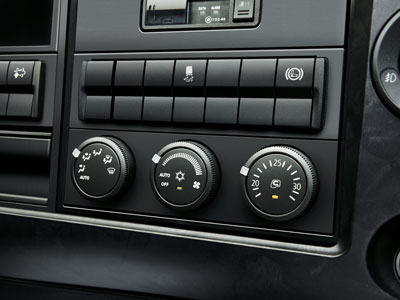

Automatic Cold Storage AC
Provides comfortable temperatures with reduced fuel consumption.

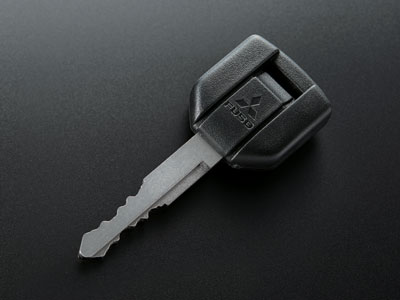

Immobilizer
Restrict engine starting with counterfeit keys. Effective in preventing vehicle theft.

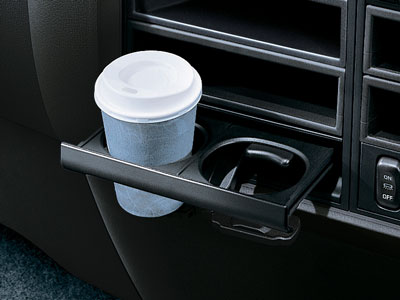

Retractable Cupholder
A retractable cup holder that can be easily folded away when not in use.

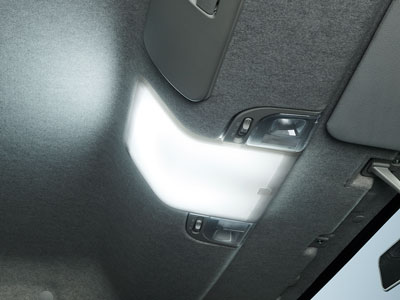

LED Interior Lighting
In addition to LED interior lights, personal lamps are standard on both sides of the cab.
Optional Equipment

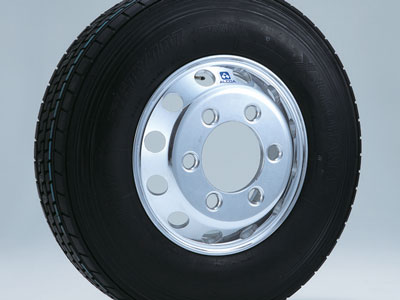

Aluminum Wheels
Improves load capacity by reducing weight and adds a little color to your vehicle as a bonus. (Photo courtesy of Alcoa)

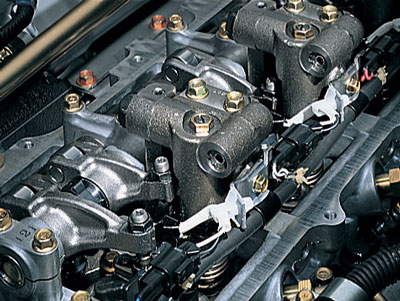

Power-tarded Brakes
Dramatically increased engine braking power for safer operation.
*199 kW (270 PS) models are standard equipment
Doze-Prevention Device (Accessory Option)
Sensors detect inattentive conditions based on pupil movement and alert the driver.

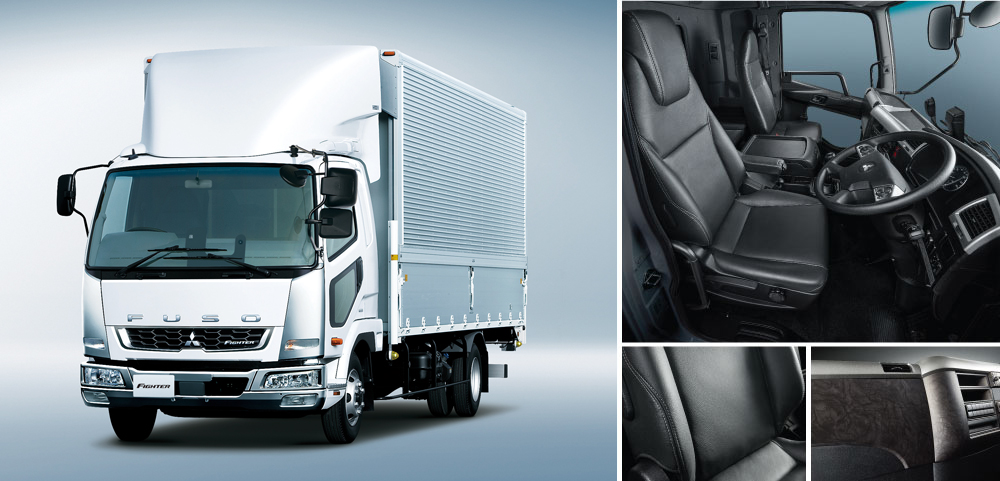

BODY VARIATIONS

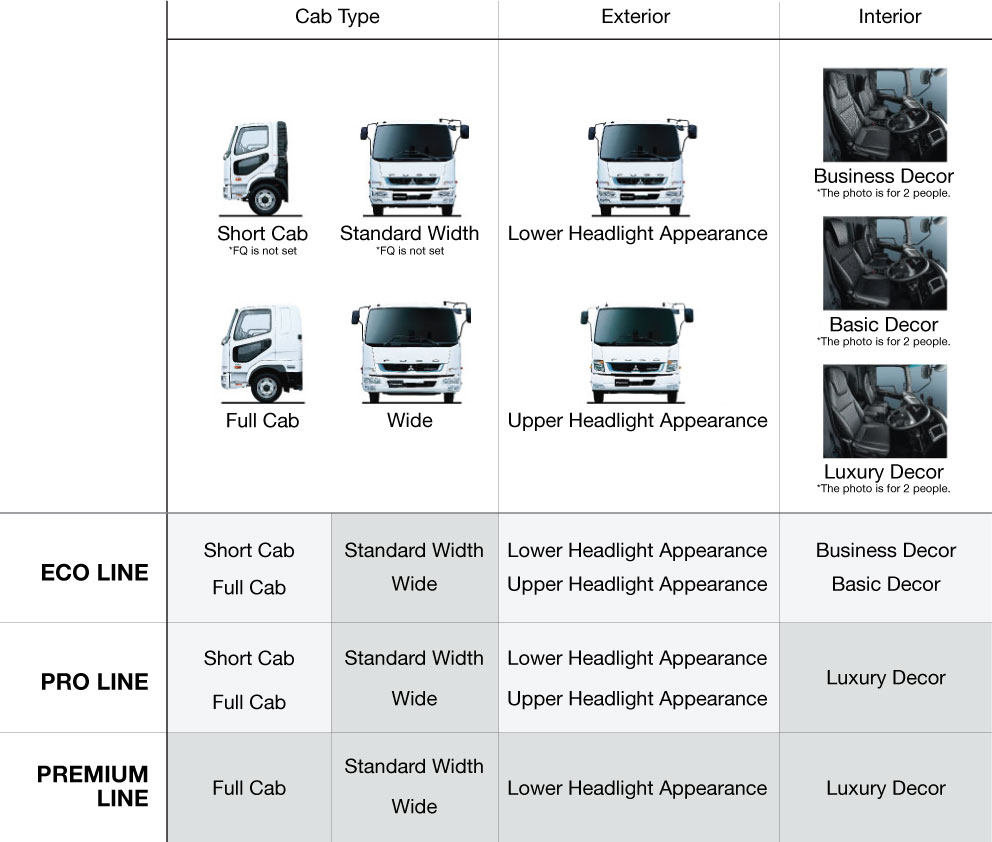

Body Variations
A Vehicle That Feels Tailor-made to Your Needs
Our mix-and-match system allows various combinations of cab type, interior and exterior and even body color. You can choose the best Fighter for your application and preference.

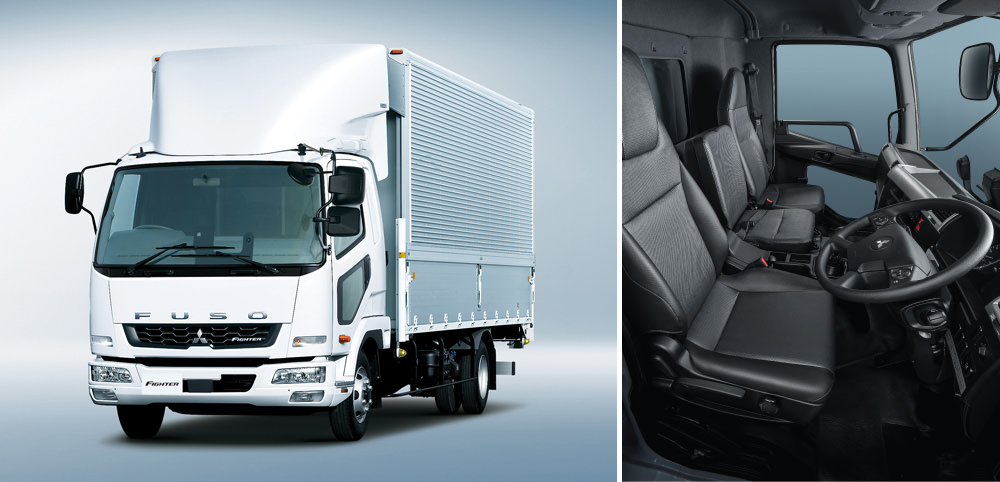

Eco Line
An economy model with the latest level of safety systems and simplified equipment.
Eco Line Equipment
Discharge headlamps (standard on vehicles with lower headlamps (Cargo grade only))
Halogen headlamps (standard on vehicles with upper headlight appearance)
Fog lamp
Composite curved side mirrors (electrically foldable on the passenger side)
Headrest-type seat
Fully automatic air conditioner with cold storage
Multi-function monitor
Floor mats (carpet (needle punch) for cargo type / PVC mats for special purpose type)
Bluetooth®-enabled audio
Fluorescent lamp
Powered windows
Centralized door lock
Door ashtray (both sides) & cigar lighter
Large floor console (seatback console for 3-passenger specification)
Beds (except for short cabs and some specially equipped cabs)
Coat hanger
ABS
Driver’s SRS airbag system and seat belt with EA and pretensioner
Pro Line / Premium Line
In addition to the latest level of safety systems, this standard model comes with a full range of popular interior features.
Pro Line / Premium Line Equipment
Main features of the Pro Lineup (features and equipment in addition to the Eco Lineup)
Green glass with shade band
Chrome bumper + Chrome grill + Chrome corner panel
Driver’s seat with armrest and lumbar support
Genuine leather seat upholstery (driver’s seat)
Genuine leather seat upholstery (front passenger seat)
High quality carpet
Black woodgrain panel
Height-adjustable seat belt anchor (passenger side)
Curtains
Driver’s seat under box (passenger’s seat if air suspension seat is used)
Bed pocket (driver’s side & passenger’s side)
Rear pillar grip (driver’s side)
Steering switch section and meter ring in silver
Premium Line main features (features and equipment in addition to the Pro Line)
Headlamp auto-leveling system
Step lamp (driver’s side & passenger’s side)
Electric remote control mirror with heater
Electric Cabtilt
Full floating cab mount
Custom emblems
Air suspension seat with driver’s armrest and lumbar support (with auto-leveling mechanism)
Heated driver seat
Passenger seat under box
Four speakers
Reading lamp

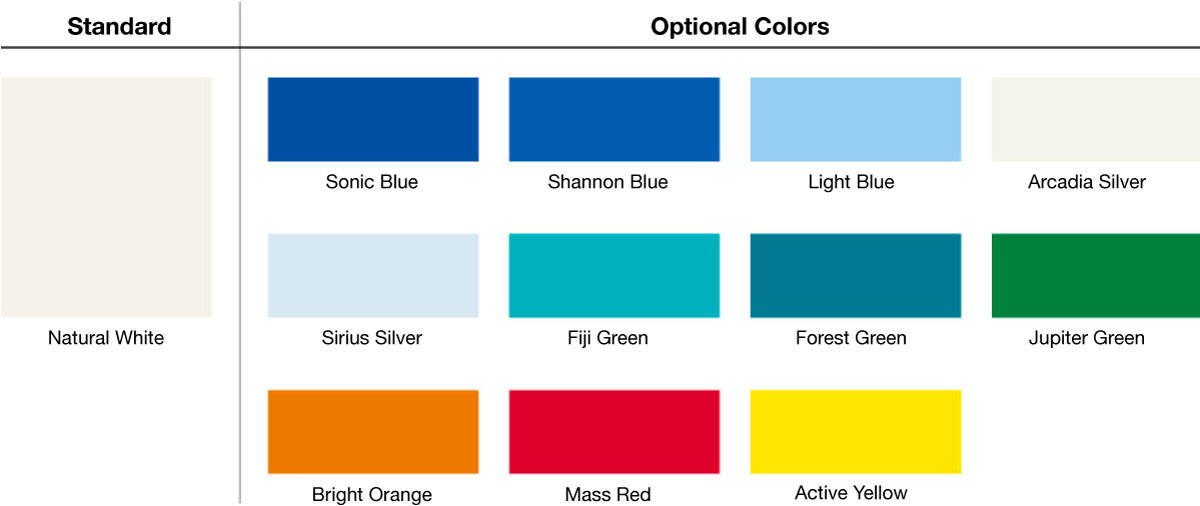

Body Colors
* Additionally, you can choose your favorite cab color (for a fee) with Fuso Genuine Color Paint, which is available in 365 colors.
The basic standard equipment for each grade is fixed. (If the customer does not make a selection, the equipment will be the default equipment of the respective grade)
For details, please consult your nearest Mitsubishi Fuso dealer.
Vehicle specifications may vary by market, please contact your local authorized FUSO dealer for details.
