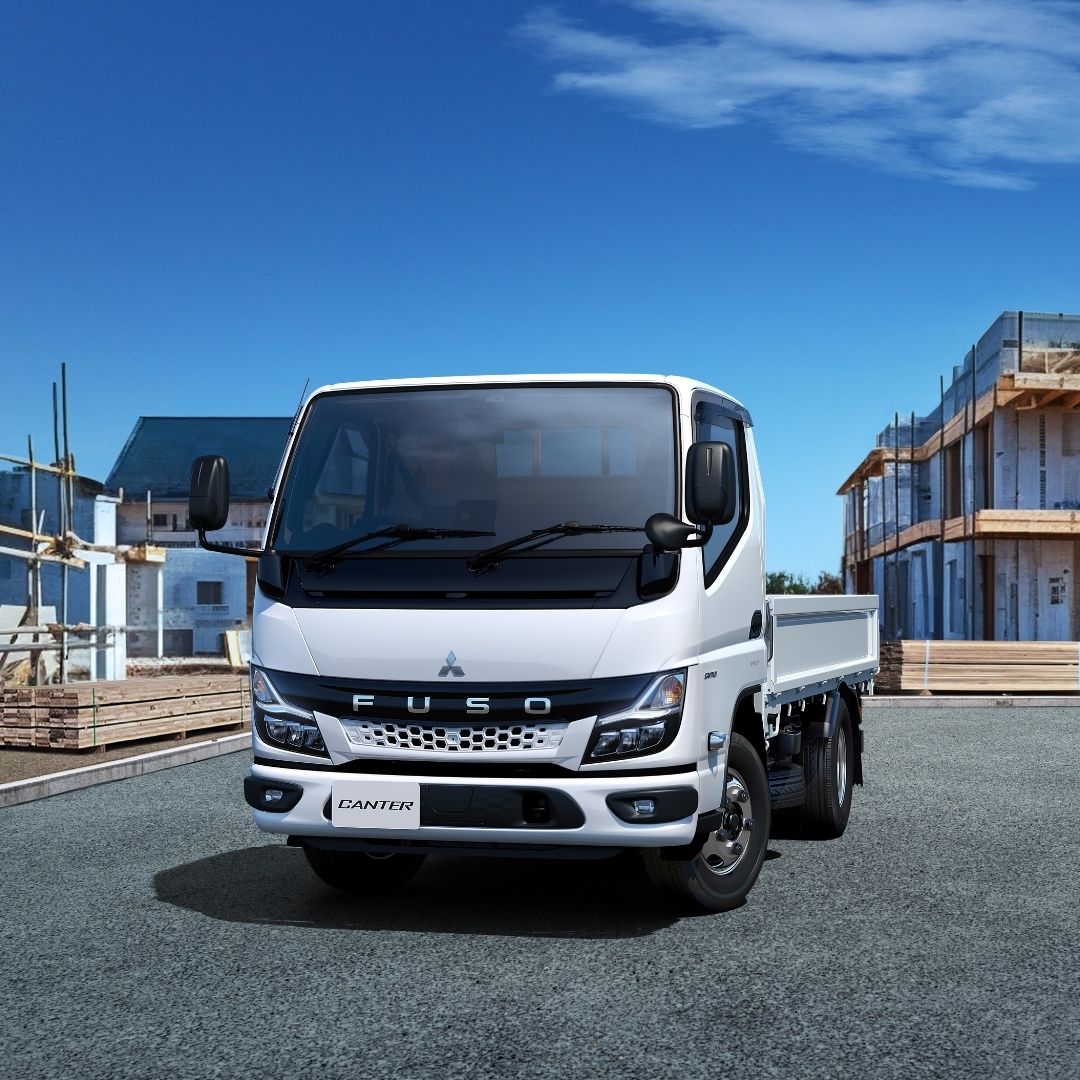

Canter
Light Duty
60 Years of Confidence-Inspiring Performance
- Overview
- Safety
- Performance
- Interior
- Variations
Delivering for Businesses Around the World for 60 Years
The Canter has been refined to offer a new type of driving experience that delivers safety and peace of mind to those in, and outside the vehicle. It is equipped with advanced functions that support safe daily driving and pursues user-friendly functions and comfortable, fatigue-free driving. Its front face is refined with the signature FUSO “black belt” design, symbolizing its upgraded capabilities.
The First Light-duty Truck in Japan*1 with Active Side Guard Assist Standard
Taking Safe Performance to a New Level
For the first time in Japan, Mitsubishi Fuso’s unique Active Sideguard Assist™, which reduces the risk of accidents involving left-turning vehicles, is now standard equipment on light-duty trucks. When turning or changing lanes to the left, the system predicts the area where the vehicle will pass and detects objects within the area. When the driver operates the steering wheel or blinker, a warning buzzer and a warning light on the passenger side door pillar alert the driver. In addition, the system detects vehicles and pedestrians in front of the vehicle*2 and assists the driver in avoiding a collision or mitigating damage from a collision by using the Advanced Emergency Braking System (AEBS). Electronic Stability Program (ESP®) helps detecting any risk of skidding or overturning on corners. Lane Departure Warning System (LDWS)*4, which alerts the driver when a vehicle departs from its lane without giving a directional signal to minimize the risk of an accident, and various other safety features support safe and nimble driving to make daily work safer and more enjoyable. *5
*1: As of October 2020, Source: Mitsubishi Fuso Truck and Bus Corporation data. *2: Only moving people are detected. *3: ESP is a registered trademark of Mercedes-Benz Group AG. *4: The system is activated when the vehicle speed exceeds 60km/h. *5: Certain conditions apply to the operation of each safety feature.
Our Never-Ending Quest for Better Economic and Environmental Performance
The 4P10, the high-performance 3L engine that supports the Canter®’s powerful driving performance, has evolved into the 4P10+. Based on the Euro VI engine, which has a proven track record in Europe, the ATS, oil pan and turbocharger have been improved. In addition to realizing even better fuel economy, the new engine also contributes greatly to improved engine reliability. In addition, we have introduced the EX Plan, which extends the warranty on specific parts such as the engine itself to 8 years/180,000 km, to support peace of mind for even longer.
LED Lights for Safer Operation Regardless of Roads, Weather or Time of Day
LEDs have been adopted for the headlights and door-side side turn lamps. The fog lights that have been available as an option have also been changed to LED. The bright white light improves visibility at night, making it easier to spot obstacles and other objects and supporting good visibility. They also contribute to lower running costs by saving power and extending service life. The headlights are equipped with a leveling switch to adjust the optical axis angle.
LED headlights*1, LED door-mounted turn signals*2, LED fog lamps*3 support driving visibility at night and in bad weather.
*1 Halogen headlights are also available (optional). *2 LEDs are used on the door side and incandescent bulbs are used on the front side. *3 Available as an option.
FUSO Easy Access System*1 Makes Repeated Vehicle Access a Breeze

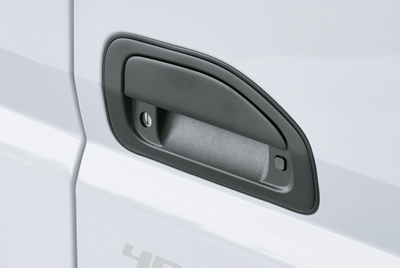

Doors can be locked and unlocked by simply pressing the switch on the door handle while the FUSO Easy Access Key is in your pocket or nearby. The doors can also be locked and unlocked by remote control. To start the engine, simply push and turn the engine switch located on the steering column. This system can be used conveniently for deliveries in the city and other operations that require getting in and out of the vehicle, starting and stopping the vehicle repeatedly.
A System With Theft-Prevention in Mind
The FUSO Easy Access Key is also equipped with an immobilizer (anti-theft device) function. A mechanical key is also available in case the battery should run out.
*1 Standard equipment on all models (optionally available without)
* Even if the FUSO Easy Access Key is within the operating range, it may not work properly if it is too close to the door glass or handle. Please refer to the instruction manual for details. Do not place devices such as an implanted cardiac pacemaker within approximately 22 cm of the vehicle’s transmitter, as this may affect the device. For details, please consult your nearest Mitsubishi Fuso dealer.
FUSO Easy Access Key
Lock/Unlock Switch

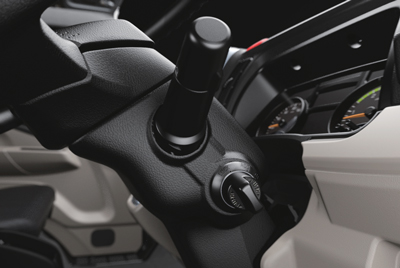

Engine Switch
Approach Angle/Departure Angle (Wide Cab 4WD Models)
Overcome Tough Road Conditions with 4WD
Stable City-Driving Even in Bad Weather. Standard Cab All Low-floor Full-time 4WD.
Full-time 4WD means no need to switch between 2WD and 4WD. The center differential distributes driving force to the front and rear wheels in the normal ratio of 30:70. In addition, the center differential absorbs the difference in rotation between the front and rear wheels for added stability. The tight corner braking phenomenon during low-speed turning is also eliminated.
Available on Vehicles Over 5 Tons Gross Vehicle Weight (GVW)
All low-floor full-time 4WD (standard cab) models are available with a GVW of over 5 tons, which boasts a generous load capacity. All models are equipped with an independent front suspension system for superior ride comfort.
Viscous LSD
When a difference in rotation occurs due to slippage in either the front or rear wheels, the viscous LSD restricts operation to ensure stable driving.
Minimum Turning Radius 5.1m (For some standard-bodied models)
The minimum turning radius is 5.1m, making it easy to maneuver. It is also suitable for delivery work in narrow city areas.
All Low-Floor Body for Easy Loading/Unloading with Generous Cargo Bed Length
The standard body has a generous cargo bed length of 3.1m. It is also equipped with flat small-diameter radial tires on the front and rear wheels, and the low floor level makes for smooth cargo handling.
Full-time 4WD vehicles are mainly designed for general driving in urban areas. They have a low minimum ground clearance and are not designed for driving on uneven terrain. It is effective for driving on snow-covered or icy roads, but please avoid overconfident driving on 4WD.
Newfound Transparency for Your Vehicle Operations with Truckonnect®
Truckonnect® provides real-time information on vehicles in operation via the Internet. Information transmitted by vehicles is stored in the FUSO database (cloud). Customers can monitor the current location and operational status of their vehicles via PC or smartphone. Truckonnect® can be used in a wide range of business situations, such as speedy response to vehicle problems, improving operational efficiency and preventing dangerous driving.
＊All vehicles are equipped with a Truckonnect communication terminal as standard. The dedicated Customer Assistance Center is available 24 hours a day, 365 days a year for various telematics services. In order to use Truckonnect services, you must apply. After FUSO informs you of the access ID and password that will be issued after the application, you will be able to use the service from your PC or smartphone. For details, please contact your nearest Mitsubishi Fuso dealer. Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
Position and Trajectory
Displays real-time position on a map and grasps the vehicle trajectory, including the route taken and the time it has parked or stopped.
Safe Driving Information
Detects sudden acceleration and braking, and displays on the screen when there is a tendency of dangerous driving.
Fuel Efficiency Information
Automatically calculates and compiles downloadable data of daily and monthly fuel consumption.
Fleet Management
Allows you to grasp the operating status of your vehicles and compare past and current months’ driving and idling time.
Remote Diagnosis
Detects diagnostic trouble codes (DTCs) that signal engine failure and notifies you in real time.
Geo-Fencing Functionality
Real-time notification when a vehicle enters or exits a specific pre-registered area, improving operational processes and efficiency.
Feedback from Our Valued Customer Continue to Drive Improvements to Truckonnect®
*Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation. Registration is required to start the Truck Connect service. Upon completion of the registration, an operation manager account will be communicated to you and you will be able to use it. For more details, please contact your local dealer or sales representative.
TOTAL SAFETY
Peace of Mind Comes Standard

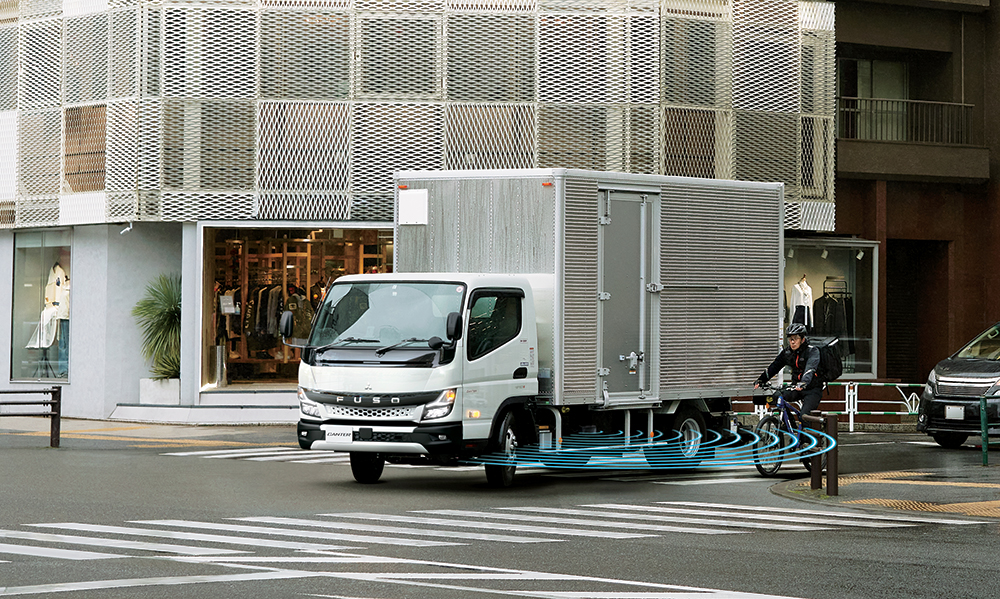

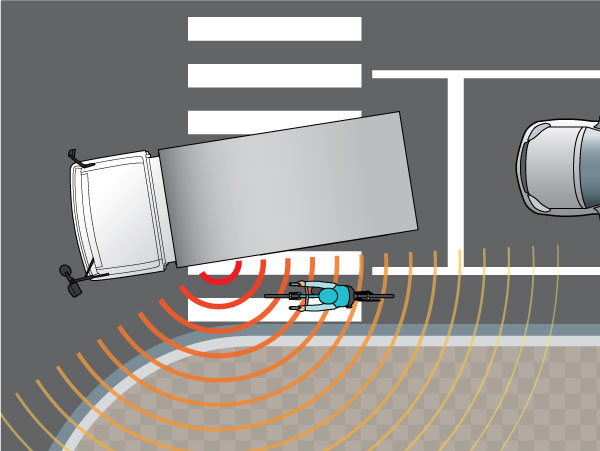

Active Sideguard Assist®
Minimizing Risks During Left Turns
When making a left turn or changing lanes to the left, the system uses lateral millimeter wave radar to detect obstacles within the predicted passing range of the vehicle. The warning lamp on the passenger door pillar will light up yellow to alert the driver. If the driver swerves or turns left with the indicator, a buzzer sounds and the warning lamp flashes red. This innovative system monitors the left side of the vehicle, which is often a blind spot when driving, and actively supports safe driving.
*1 As of September 2020, according to Mitsubishi Fuso Truck and Bus Corporation data.
* Also available with reduced options. Additionally, the loader dump truck, 4-ton dump truck, 4WD truck, and cab back crane truck will not be equipped with this feature.
* Some models may not be available depending on the installation or options. For details, please contact your nearest Mitsubishi Fuso dealer.
* Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
■ Active Sideguard Assist helps prevent driver errors and alerts in case a driver falls asleep or loses track of the road. There is a limit to the recognition performance. Do not overestimate the system, always check the safety of your surroundings when driving, and drive safely.

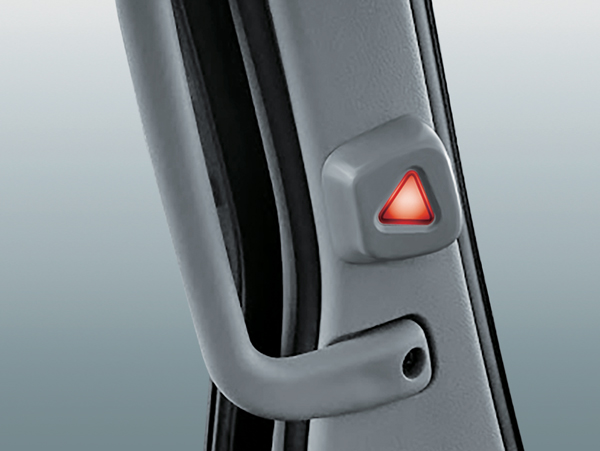

■ Primary warning: When an obstacle on the left side of the vehicle is detected, the lamp turns yellow.
■ Secondary warning (photo): If the driver continues to steer to the left or put on the left turn indicator, the lamp will flash red with a warning buzzer.
Including Cut-Off Functionality
While the function is deactivated, the LED symbol in the meter lights up. It will switch on when the engine is restarted.

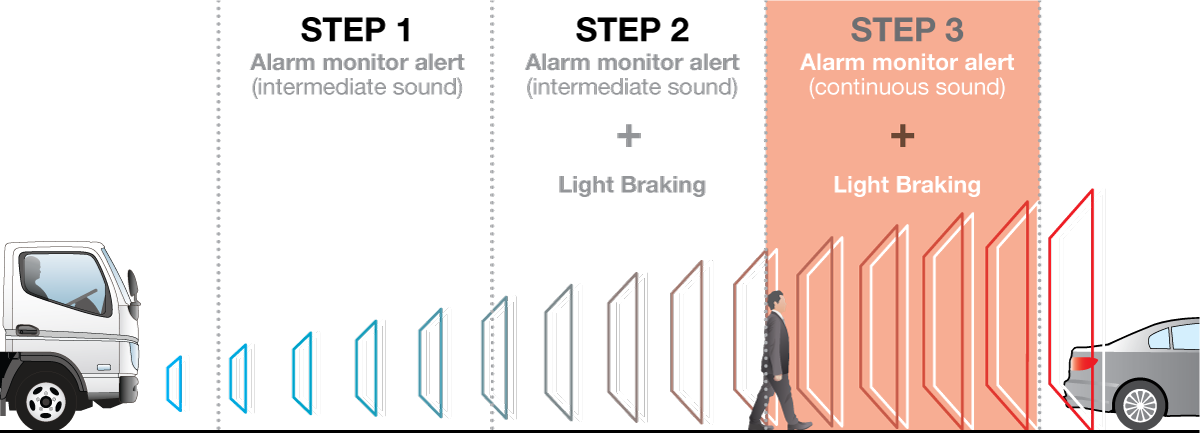

Advanced Emergency Braking System (AEBS) *1
System-Enabled Vehicle and Pedestrian Recognition Helps Prevent Accidents
The high-precision millimeter-wave radar mounted on the front bumper detects moving and stationary vehicles and pedestrians*2 in front. When a potential collision is detected, the system alerts the driver according to the distance and driving conditions, and automatically activates the brakes*3 to help avoid or mitigate damage from a collision. When AEBS is activated, the Ivis® (Multi-Information System) display in the instrument cluster warns the driver and the warning lamp flashes.
*1: Standard equipment on all models except Wide Cab 4WD models.
*2: Detects moving persons only.
*3: Specific conditions apply for operation. *Ivis® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
■ AEBS may not work depending on the situation of the vehicle in front or pedestrians, road conditions, weather, vehicle condition, driver condition, etc. Please refer to the instruction manual for details.
■ AEBS is not designed to avoid collision or mitigate collision damage in all situations and its recognition and control performance is limited. When driving, be sure to check the safety of your surroundings and keep an adequate distance between vehicles.
Electronic Stability Program (ESP®) *1
Skid and Rollover Prevention in Curves
A sensor constantly detects the vehicle’s posture. If there is a risk of skidding or rolling over on a curve, the system optimally controls the engine drive power and braking power of all four wheels to help the driver adjust the vehicle’s posture and avoid skidding or rollover. An ESP® cut switch is also provided to deactivate the function, and an ESP® OFF warning lamp clearly informs the driver of the OFF status or malfunction.
*1 Standard equipment on all vehicles except wide cab 4WD vehicles.
* ESP® is a registered trademark of Mercedes-Benz Group AG.
ESP® is not a device that allows you to drive beyond your limits; ESP® is effective only when the grip of the tires does not exceed its limits. Do not overestimate the effectiveness of ESP®, and be sure to drive safely by slowing down sufficiently on slippery roads and before curves.
Lane Departure Warning System (LDWS)
Promptly Warns the Driver Upon Lane Deviation
When a vehicle deviates from its lane on an expressway or other road without operating the turn signal, the white line recognition camera*1 detects the deviation. The system alerts the driver with a buzzer and an Ivis (multi-information system) in the instrument cluster to encourage safe driving. A cut-off switch is also provided to deactivate the function. A warning lamp is also provided to indicate that the system is off or malfunctioning.
*1: Yellow lines are also recognized.
■ LDWS is activated at a vehicle speed of 60km/h or higher. For details, please refer to the instruction manual.
■ The LDWS is designed to assist in safe driving and is not a device that enables drivers to fall asleep or look over their shoulder. LDWS cannot assist in driving when white or yellow lines cannot be recognized, such as in snowfall, snow accumulation, flooding, backlighting or when visibility is poor, such as in rain or fog. Please operate the steering wheel according to the surrounding conditions and drive safely.

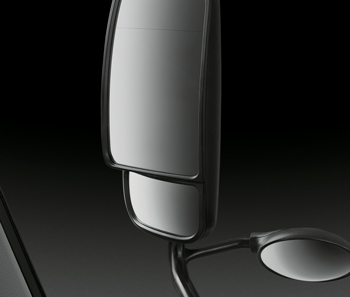

Front Passenger Seat with Large Two-Way Mirror
(Electric Retraction Type/Manual Retraction Type) *1
The left side of the vehicle is reflected in the lower wide-angle mirror, widening the field of vision. This contributes to preventing accidents when turning left and assists in safety when changing lanes.
*1: Electric or manual folding type is available as an option for all models except double cab models.
* Some models are not available. Please contact your nearest Mitsubishi Fuso dealer for the model in question.

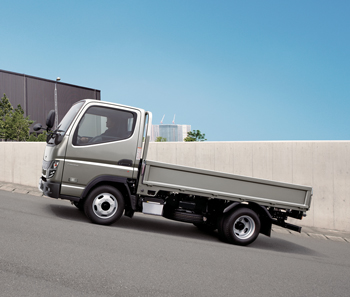

Hill Start Assist Function
(Vehicles Equipped with DUONIC 2.0)
When starting up on an incline, the system temporarily holds the braking force while the driver moves the foot from the brake pedal to the accelerator pedal. This prevents the vehicle from backing up.
Electric Parking Brake (EPB)
(Optional *1)
The electric motor assists to achieve a light operating force. Stable braking force can be maintained even when parking on a slope.
*1: Available as an option for single-cab models in the 2.0-ton class and above.
Other Equipment
All-Wheel Disc Brakes *1
All wheels are equipped with disc brakes that provide excellent heat dissipation and are less prone to abrasion.
*1: Standard equipment on 2WD and standard cab 4WD models.
* Wide cab 4WD vehicles have drum brakes on all wheels.
Brake Wear Indicator *1
When the brake pads are excessively worn, the sensor in the pad will react and the indicator in the meter will light up.
*1: Drum brake vehicles excluded.
EZGO® (Optional for Manual Transmission Models)
After stopping the vehicle on an uphill road, the braking force can be retained even when the foot is removed from the brake pedal.
* The parking support system is not equipped.
* EZGO® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
Brake Override System (Brake Priority Control)
If the brake pedal is pressed while the accelerator pedal is depressed, the brake takes priority over the accelerator pedal.
* If the accelerator pedal is pressed when the brake pedal is pressed first, no special control will be applied.
PERFORMANCE
An Engine That Respects the Environment, Your Fuel and Your Trust.
3ℓ DOHC 16-VALVE INTERCOOLER TURBO
4P10+ 2.998L Engine (Inline 4 Cylinder Intercooled Turbo)
4P10＋（T1）
81kW (110PS) /
2,130rpm
430N･m (43.8kgf･m) /
1,600rpm
4P10＋（T2）
96kW (130PS) /
2,130rpm
430N･m (43.8kgf･m) /
1,600～2,130rpm
4P10＋（T4）
110kW (150PS) /
2,440rpm
430N･m (43.8kgf･m) /
1,600～2,440rpm
4P10＋（T6）
129kW (175PS) /
2,860rpm
430N･m (43.8kgf･m) /
1,600～2,860rpm
Optimized for Fuel Consumption and Environmental Friendliness
We have refined the 4P10+ engine to supports excellent economy, stable operation and driving performance. Engine oil capacity has been increased, and the piston rings, injectors, turbocharger, exhaust after-treatment system and other parts have been improved. The result is high dynamic performance, environmental and economic performance and outstanding durability and reliability.
Top-of-Class Performance
All models meet the 2015 heavy-duty vehicle fuel efficiency standards. The 1.5-ton load model surpasses fuel consumption standards by 15%, and most other models achieve +10%. All vehicles comply with the 2008 exhaust gas regulations. In addition, all vehicles have been certified as low-emission vehicles designated by nine Japanese prefectures and cities (ultra-low emission vehicles under the 2009 standards).
Compatible with advanced on-board failure diagnostic equipment [J-OBDII] *1
The system is compatible with highly precise emission reduction technologies. In the event of an abnormality, the system displays an alarm and stores the details of the failure in the system.
*1 Vehicles with a gross vehicle weight of over 7.5 tons
BlueTec® Combines Three Technologies to Achieve Best Fuel Efficiency and Environmental Performance
High Performance 3L Engine 4P10+ BlueTec® Exhaust Aftertreatment System Regenerative DPF®
■ BlueTec® Exhaust Aftertreatment System
AdBlue® (aqueous urea) is injected to decompose NOx in the exhaust gas through a chemical reaction, resulting in significant NOx reduction.

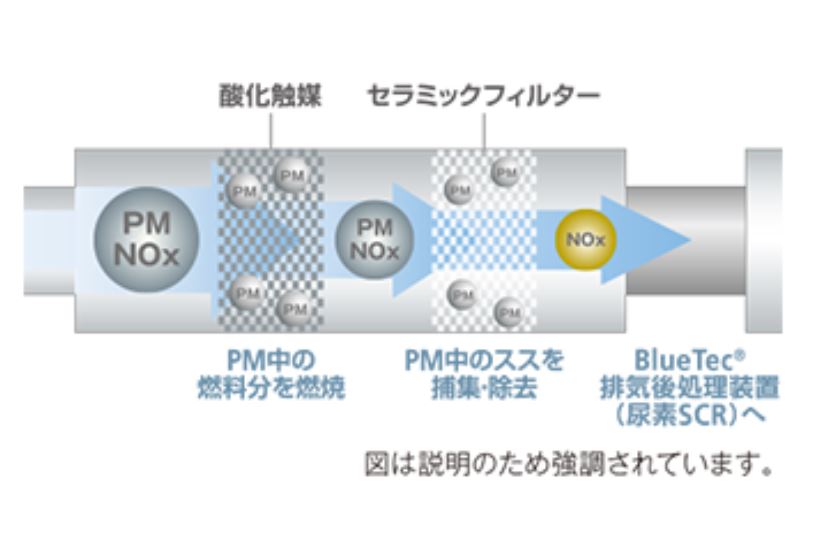

■ Regenerative DPF
Significantly reduces PM in exhaust gas. We have also refined the high practicality of the system by extending the regeneration interval and suppressing oil dilution.
* BlueTec® is a registered trademark of Daimler AG.
* AdBlue® and AdBlue® are registered trademarks of the German Automobile Manufacturers Association.
Dual Clutch Powerful Driving Performance with Smooth Gear Shifting
By instantly switching between the two clutches, power transmission efficiency is maximized, resulting in excellent fuel efficiency and easy two-pedal driving. It can be driven with an automatic limited license, contributing to reduced driving fatigue. It is also possible to switch to manual mode by operating the gearshift.
■ Creep function: Smooth running at low speed on platforms.
■ P (parking) range*1: Allows you to lock the transmission’s internal gears when parking.
■ Clutch maintenance-free*2 : No need to replace the clutch periodically.
*1 When parking the car, be sure to pull the parking brake lever first and then shift into the P range.
*2 It is necessary to replace the ATF (automatic transmission fluid).
* AMT: Automated Manual Transmission (mechanical automatic transmission)
* DUONIC® is a registered trademark of Daimler AG.
* DPF® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.
COMFORT
An Interior Focused on the Business of Driving

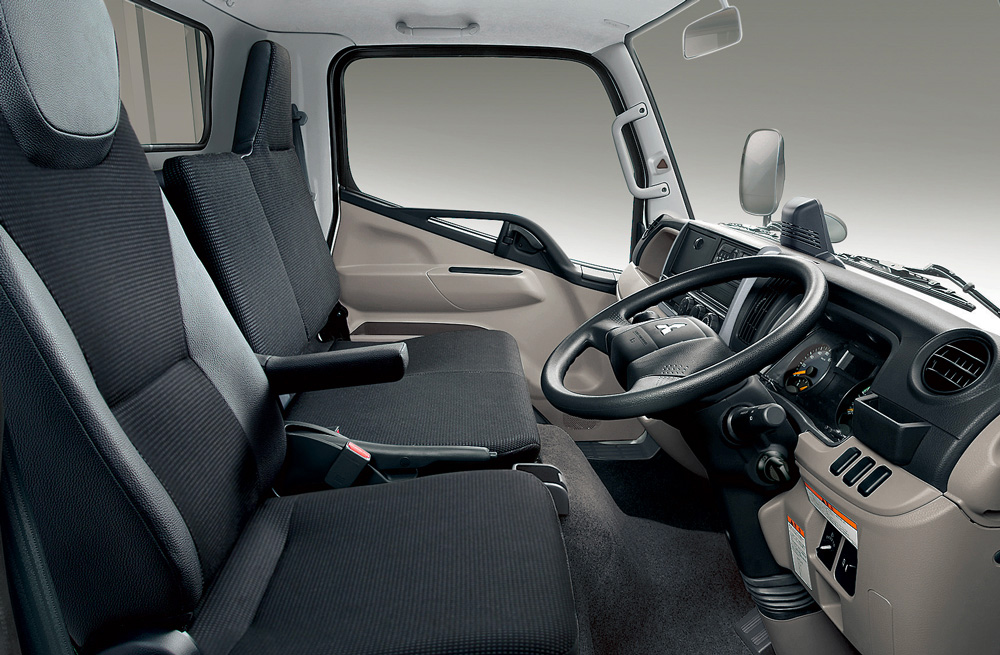

Comfortable Interior and Fatigue-Resistant Seats for Daily Driving
The interior has been designed to provide a comfortable feel, ease of driving and reduce fatigue. In addition to the highly visible gauges, the layout of switches allows for immediate response to operations while driving, and the room mirror complies with new safety standards. The driver’s seat has side support for better hold, and the large seat cushion supports the body, preventing fatigue after long hours of driving.
Generous Space With Room to Move

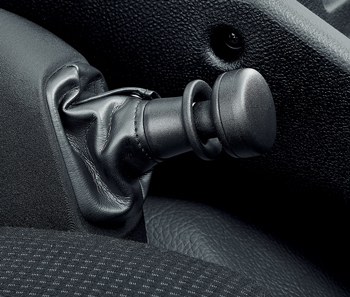

The instrument panel, gear shift and retractable parking brake levers provide more space under the instrument panel, allowing smooth movement between the driver and passenger seats.

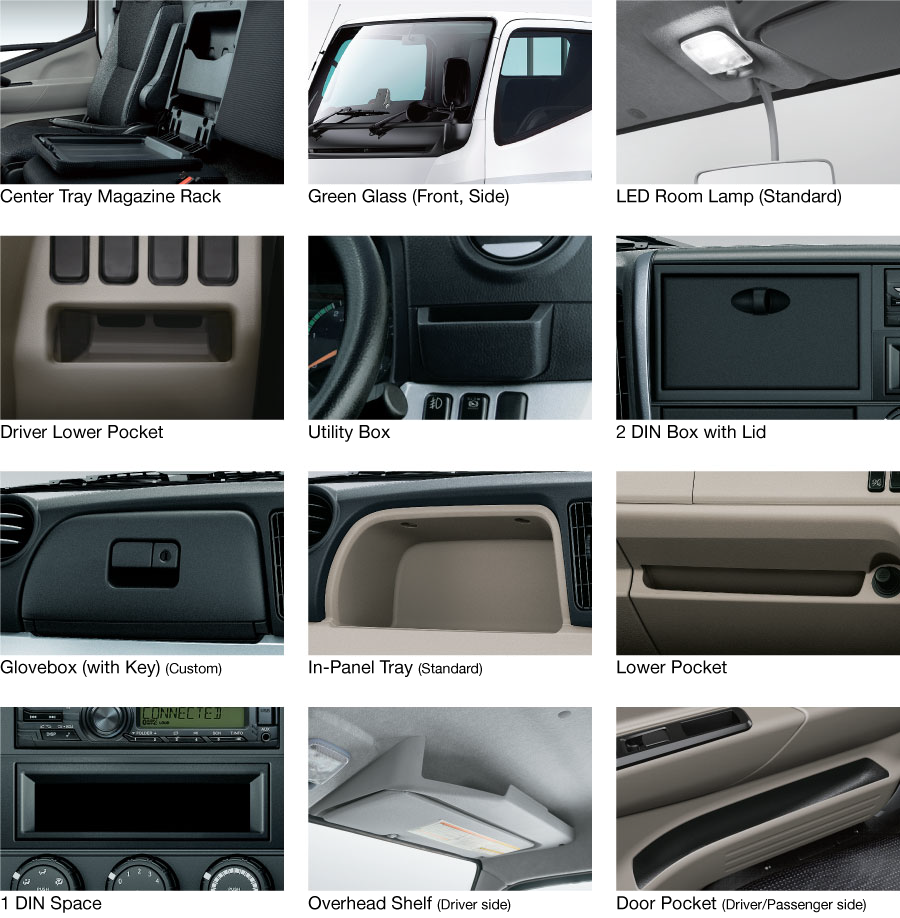

Functional and Easy-to-Use Storage
A variety of storage functions are available, including an overhead shelf*1, floor console (with bag hooks), center tray and magazine rack. These easy-to-use features provide comfortable support for your daily work.
*1 The Standard model is equipped on the driver’s side, while the Custom model is equipped on the driver’s and passenger’s sides.

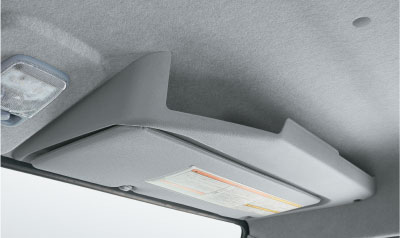

Overhead Shelf (Driver’s Side)

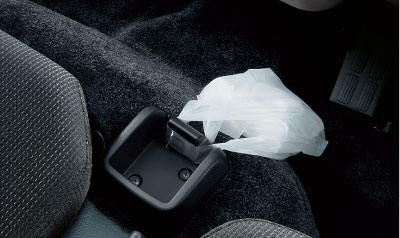

Floor Console (With Bag Hook)
Center Tray, Magazine Rack
FUSO Easy Access System*1 Makes Repeated Vehicle Access a Breeze
Doors can be locked and unlocked by simply pressing the switch on the door handle while the FUSO Easy Access Key is in your pocket or nearby. The doors can also be locked and unlocked by remote control. To start the engine, simply push and turn the engine switch located on the steering column. This system can be used conveniently for deliveries in the city and other operations that require getting in and out of the vehicle, starting and stopping the vehicle repeatedly.
A System With Theft-Prevention in Mind
The FUSO Easy Access Key is also equipped with an immobilizer (anti-theft device) function. A mechanical key is also available in case the battery should run out.
*1 Standard equipment on all models (optionally available without)
* Even if the FUSO Easy Access Key is within the operating range, it may not work properly if it is too close to the door glass or handle. Please refer to the instruction manual for details. Do not place devices such as an implanted cardiac pacemaker within approximately 22 cm of the vehicle’s transmitter, as this may affect the device. For details, please consult your nearest Mitsubishi Fuso dealer.
FUSO Easy Access Key
Lock/Unlock Switch
Engine Switch
Features That Ease Your Daily Work

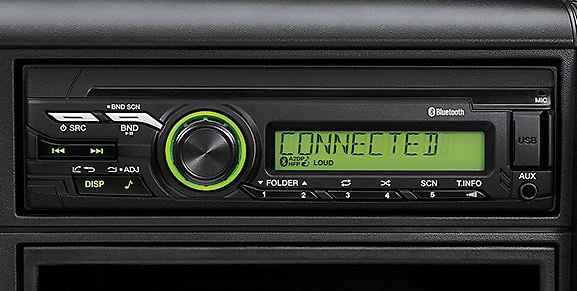

Bluetooth®-Supported Audio Functionality
Connect your smartphone and other devices to the on-board audio player via Bluetooth®, an auxiliary jack and a USB slot, allowing you to play MP3/WMA audio files. Phone calls can be taken using the Bluetooth® hands-free function. AM/FM tuner radio with alarm function.
* The Bluetooth® word mark and logo are registered trademarks and are the property of Bluetooth SIG, Inc. Mitsubishi Fuso Truck and Bus Corporation uses these marks and logos under license.
* WMA (Windows Media™ Audio) is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.
BODY VARIATIONS
With Versatility Like This, It’s No Wonder It’s Reached Legendary Status

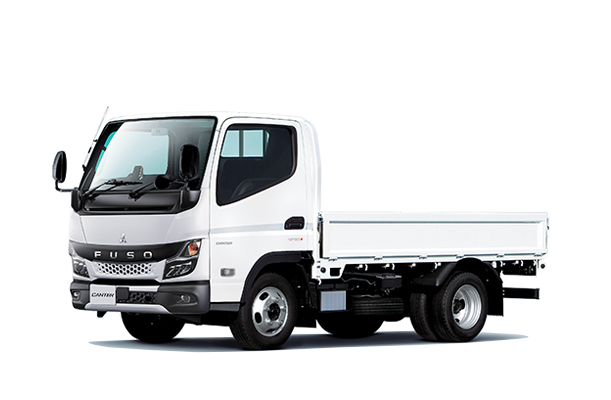

Cargo
Canter EX Cargo

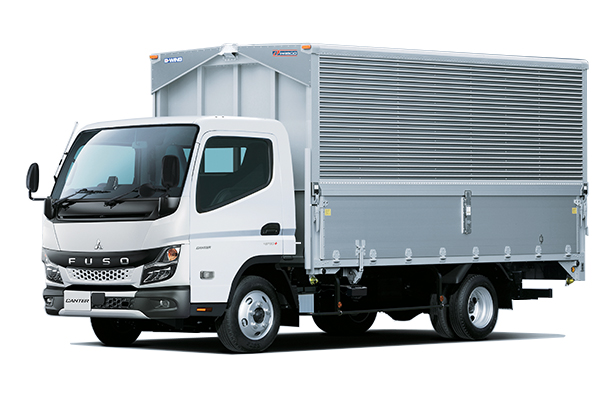

D-VAN/D-WING
Reefer/Refrigerator
Dump

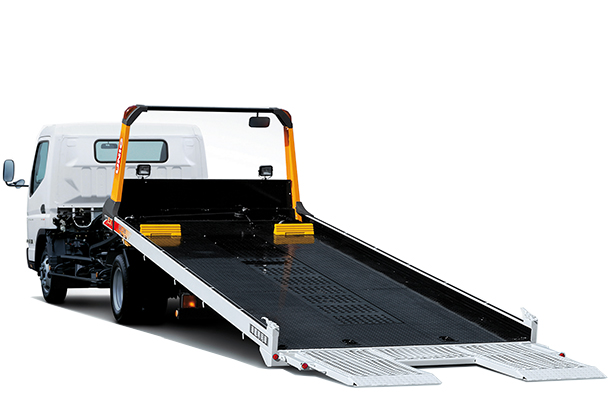

Carrier Car
For further details, please refer to the relevant page of the Catalog (Japanese only)
NEW!
The 1.5-Ton Manual Transmission Canter is Back!
The Canter 1.5-ton-class (2WD model) has been reborn with enhanced safety and comfort features. The long-awaited manual transmission model is back after a ten-year absence. With a more flexible driving feel and a more powerful engine, this model is recommended for customers who are particular about driving performance.
For more details, please see the relevant page of the Catalog (Japanese only)
Cab Variations
The FUSO Canter comes in single or double cab variants to suit your business needs.

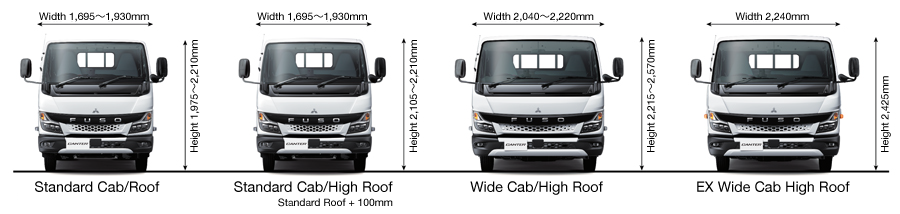

Cab Width & Roof Height

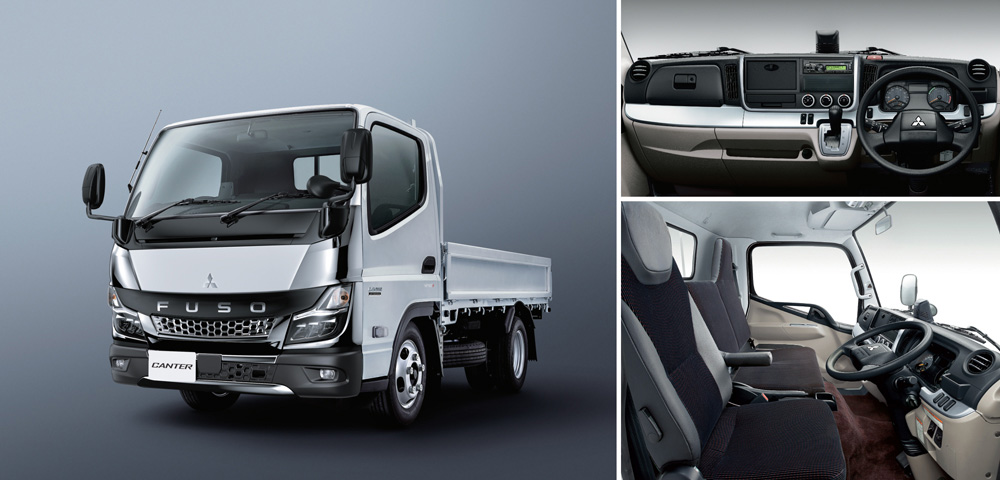

Standard
Standard Variant Equipment
For Details Click Here
LED headlights
LED turn signal lamps (door-mounted)
Manual retractable mirror stays (right and left, EX is driver’s side only)
Variable intermittent wiper with time adjustment
Full interior trim (semi-trim for double cab)
Floor carpet (needle punch)
Driver’s seat with reclining and sliding mechanism
Driver’s SRS airbag system
3-point ELR seat belt with EA and pretensioner (driver’s seat)
Manual air conditioner
Bluetooth®-enabled audio
FUSO Easy Access System
Driver’s seat armrest
2-DIN box with lid (with cup holder)
Compact floor console (with bag hook) (standard cab)
Large floor console (wide cab, EX)
Center tray, magazine rack *1
Active Sideguard Assist
Hill Start Assist function (DUONIC vehicles)
Brake wear indicator (not available on Wide Cab 4WD models)
Collision Damage Mitigation Brake (AEBS) (not available on Wide Cab 4WD models)
Electronic Stability Program (ESP®) (not available on Wide Cab 4WD models)
Lane Departure Warning System (LDWS)
*1 When the optional vinyl leather seats are selected, the center tray and magazine rack are not installed.
Custom
Custom (Option) Exclusive Equipment
For Details Click Here
In addition to the standard model features, the following Custom (optional) exclusive features are added:
LED fog lights
Floor carpet (cut pile)
Moquette seat with driver’s seat reclining and sliding mechanism
Driver’s seat with lumbar support
Driver’s seat: Magnetic suspension seat (wide cab vehicles)
Overhead shelf (passenger seat)
Passenger side sun visor
Large room lamp with spotlight (bulb type)
Fully automatic air conditioner
Glovebox with key (standard cab models)
Glovebox and small tray with key (wide cab models)
Plated grill
Plated bumper
Plated corner panel
Right and left step lamps
* Custom not available for wide cab 4WD models and double cab models; Custom (optional) exclusive equipment available upon order.
Textile Variations
Color Variations
* All variations are available for cargo; some variations are available for D VAN, D WING, refrigerator/refrigerator vans, dump trucks and carrier cars.
* The seat fabric and body color may look different from the actual color.
Vehicle specifications may vary by market, please contact your local authorized FUSO dealer for details.
